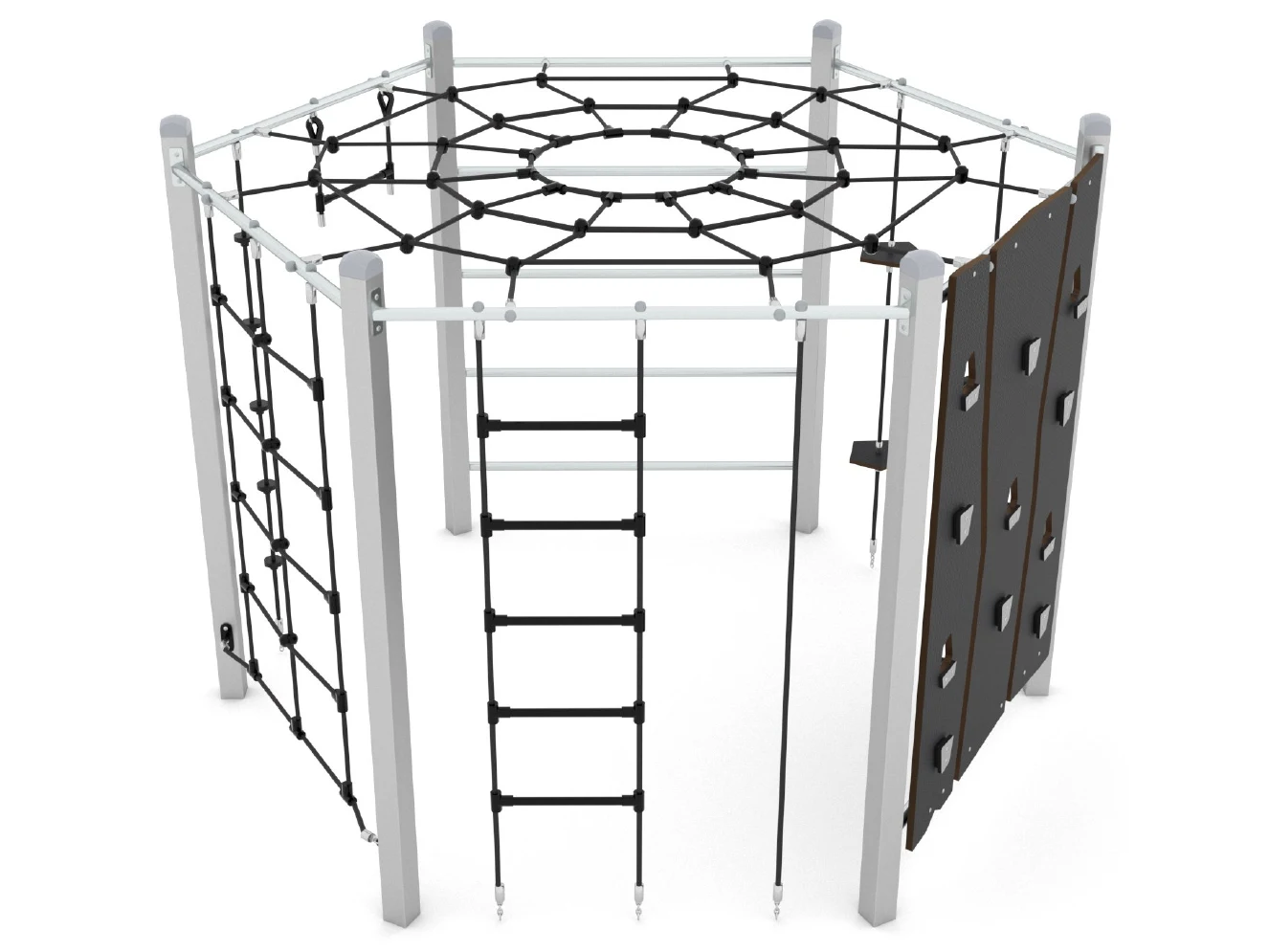

Hexagonal Steel Climbing Frame with Spider Net, Rope Ladder & Climbing Wall
All-steel hexagonal climbing frame with overhead spider net, rope ladder, climbing net and climbing wall for 18 users aged 3–14. BS EN 1176.
Overview
Six sides, six ways to climb, in an all-steel frame. Children take on a rope ladder, a vertical climbing net, a climbing wall with holds, hanging ropes and steel pull-up bars around the outside, all topped by an overhead spider-web net. With space for 18 users, it's a sociable centrepiece for KS1 and KS2 playgrounds, parks and housing development play areas, and the steel posts suit sites where a low-maintenance finish matters. Galvanised, powder-coated 80 mm steel posts (stainless option) with steel-core rope and HDPE holds; certified to BS EN 1176-1. Also available with timber posts.
- Product type: Six-sided steel climbing frame with overhead spider net
- Play activities: Spider-web net (overhead net across the top of the frame); Rope ladder (ladder with synthetic rungs); Climbing net (vertical net on one face); Climbing wall (panels with HDPE climbing holds); Climbing ropes (hanging ropes to climb); Pull-up bars (steel bars around the frame)
- Dimensions (L x W x H): 2.90 x 2.55 x 2.05 m
- Safety zone: 6.70 x 6.35 m (34.1 m²)
- Free-fall height: 2.00 m
- User capacity: 18 users
- Recommended age: 3–14 years
- Frame: Galvanised and powder-coated steel posts, 80 x 80 mm profile (stainless steel version available)
- Climbing walls: Anti-slip, waterproof plywood or HPL panels
- Climbing holds: Weather-resistant HDPE
- Rope ladders: Steel-core rope with synthetic rungs
- Chains: Calibrated stainless steel chains to prevent finger entrapment
- Ropes: Steel-core rope with polypropylene braid; plastic, stainless steel or aluminium connectors
- Bars & fittings: Stainless steel
- Fixings: Stainless steel or cap-covered screws; rubber or polypropylene post caps
- Foundations: Concrete footings 60–80 cm deep on level ground
- Standard: BS EN 1176-1:2017+A1:2023
- Surfacing: Free-fall height is 2.00 m, so impact-absorbing surfacing is needed across the impact area: a synthetic surface tested to EN 1177 for a critical fall height of at least 2.00 m, or 300 mm of loose-fill bark, woodchip or sand. We'll specify and quote the right surface for your site.
- Morti ref.: MSP1420STJJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
Downloads
Need CAD files or a site-specific layout? Ask us and we'll send them over.
Get a free design & budget price
Tell us your site size and age group and we'll send a layout, surfacing options and a budget price — usually within one working day.
