Climbing Net & Rock Wall Play Frame
Compact steel climbing frame pairing a rope net with a curved rock-climbing wall, for 4 users aged 3–14. BS EN 1176. For schools, parks and play areas.
Overview

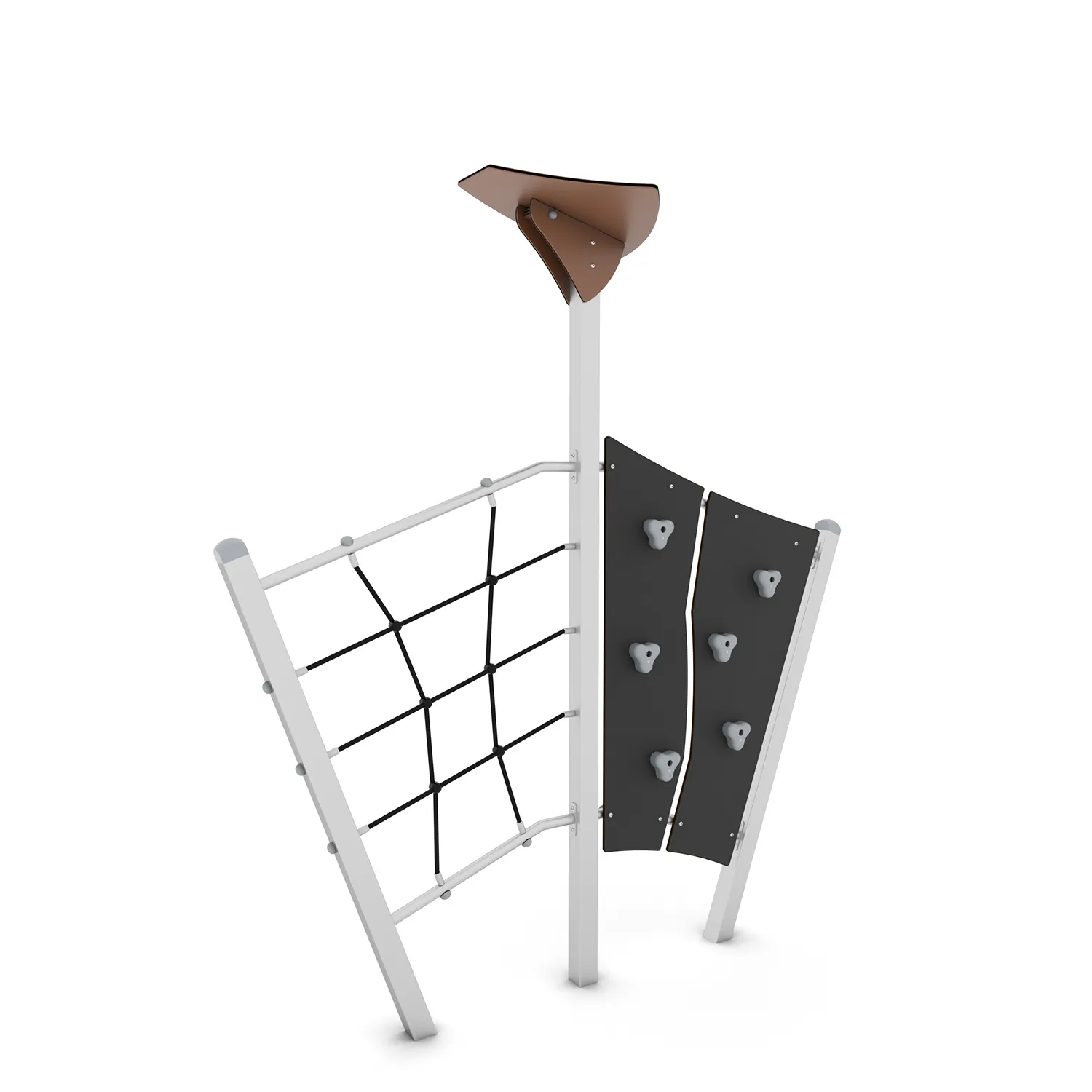

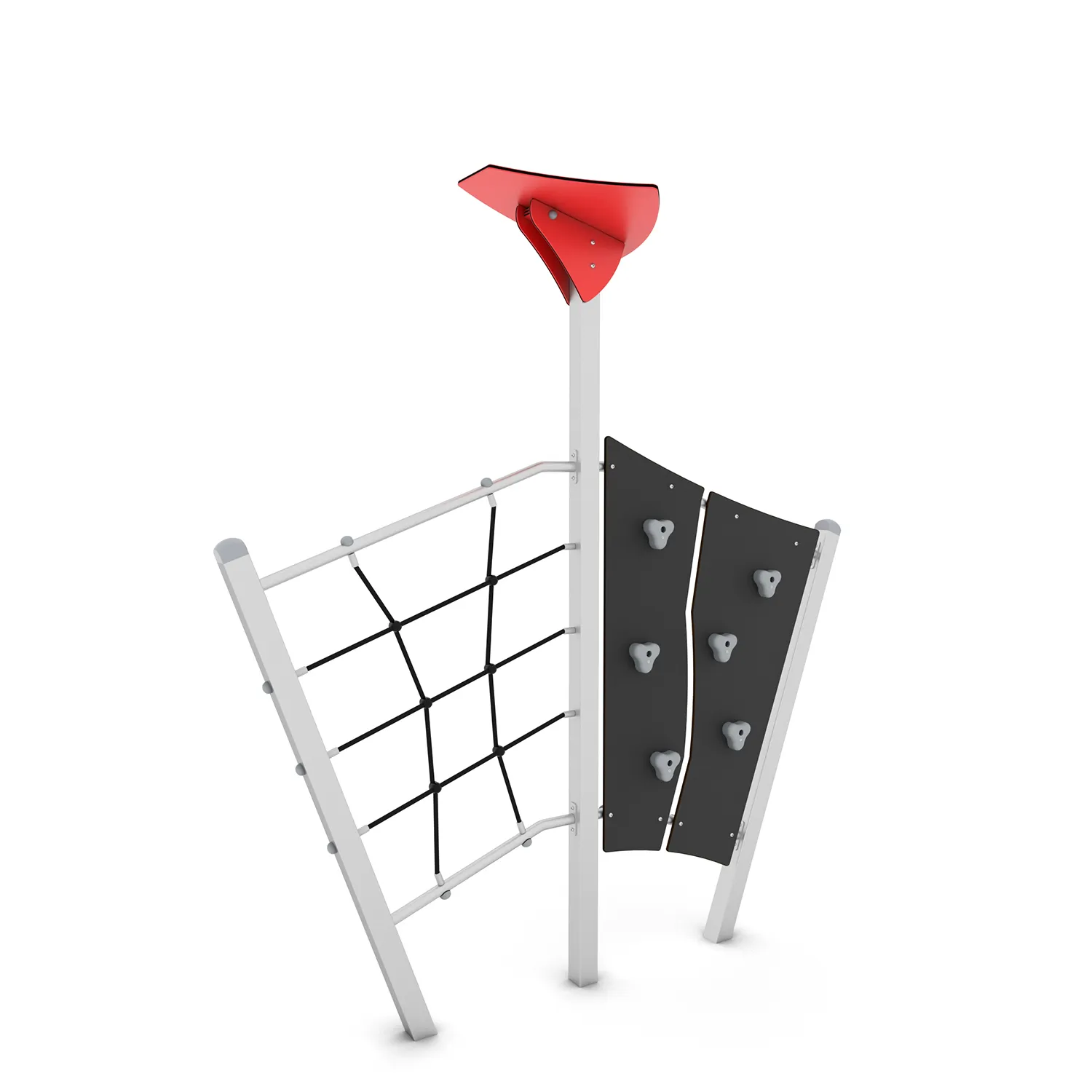

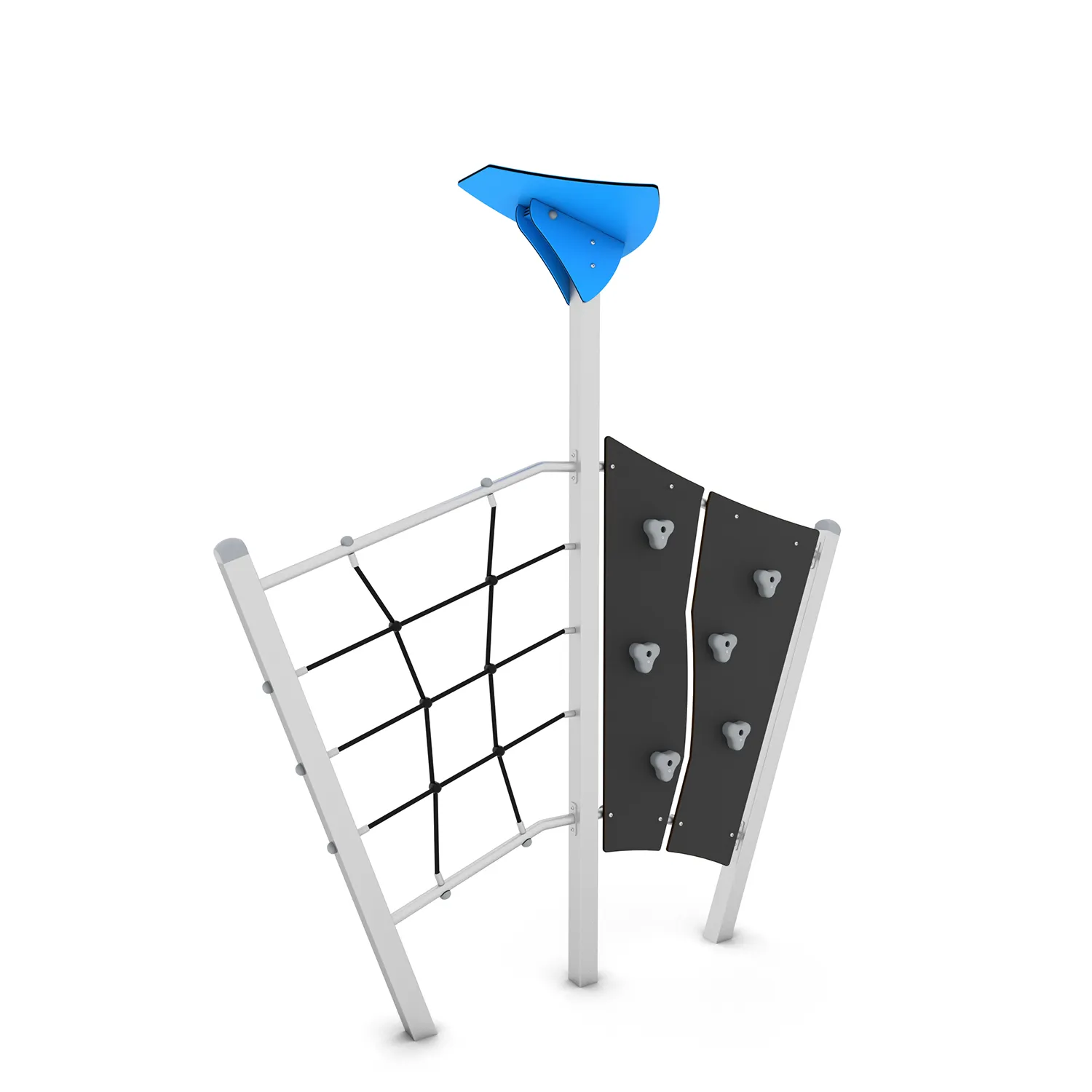

A compact climber with two routes up: an angled rope net on one side and a curved climbing wall with resin holds on the other, meeting at a central post topped with a colourful canopy. Children pick their own line, building grip strength, coordination and confidence at height. At just 2.60 x 0.68 m it slots into smaller spaces or works as one stop on a trim trail at schools, parks and housing development play areas. Galvanised, powder-coated 80 mm steel posts, an HPL wall panel and steel-core rope; certified to BS EN 1176-1 with a free-fall height of 2.0 m.
- Product type: Compact steel climber with rope net, climbing wall and canopy
- Play activities: Rope net (angled net climb on one side); Climbing wall (curved HPL wall with resin holds); Canopy (colourful canopy on the central post)
- Dimensions (L x W x H): 2.60 x 0.68 x 2.89 m
- Safety zone: 6.40 x 3.92 m (22.0 m²)
- Free-fall height: 2.00 m
- User capacity: 4 users
- Recommended age: 3–14 years
- Frame: Galvanised and powder-coated steel posts, 80 x 80 mm profile (stainless steel version available)
- Climbing walls: Anti-slip, waterproof HPL panels
- Climbing holds: Polyester-resin composite with mineral fillers
- Ropes: Steel-core rope with polypropylene braid; plastic, stainless steel or aluminium connectors
- Bars & fittings: Stainless steel
- Fixings: Stainless steel or cap-covered screws; rubber or polypropylene post caps
- Foundations: Concrete footings 60–80 cm deep on level ground
- Standard: BS EN 1176-1:2017+A1:2023
- Surfacing: Free-fall height is 2.00 m, so impact-absorbing surfacing is needed across the impact area: a synthetic surface tested to EN 1177 for a critical fall height of at least 2.00 m, or 300 mm of loose-fill bark, woodchip or sand. We'll specify and quote the right surface for your site.
- Morti ref.: MSP1714JJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
Downloads
Need CAD files or a site-specific layout? Ask us and we'll send them over.
Get a free design & budget price
Tell us your site size and age group and we'll send a layout, surfacing options and a budget price — usually within one working day.
