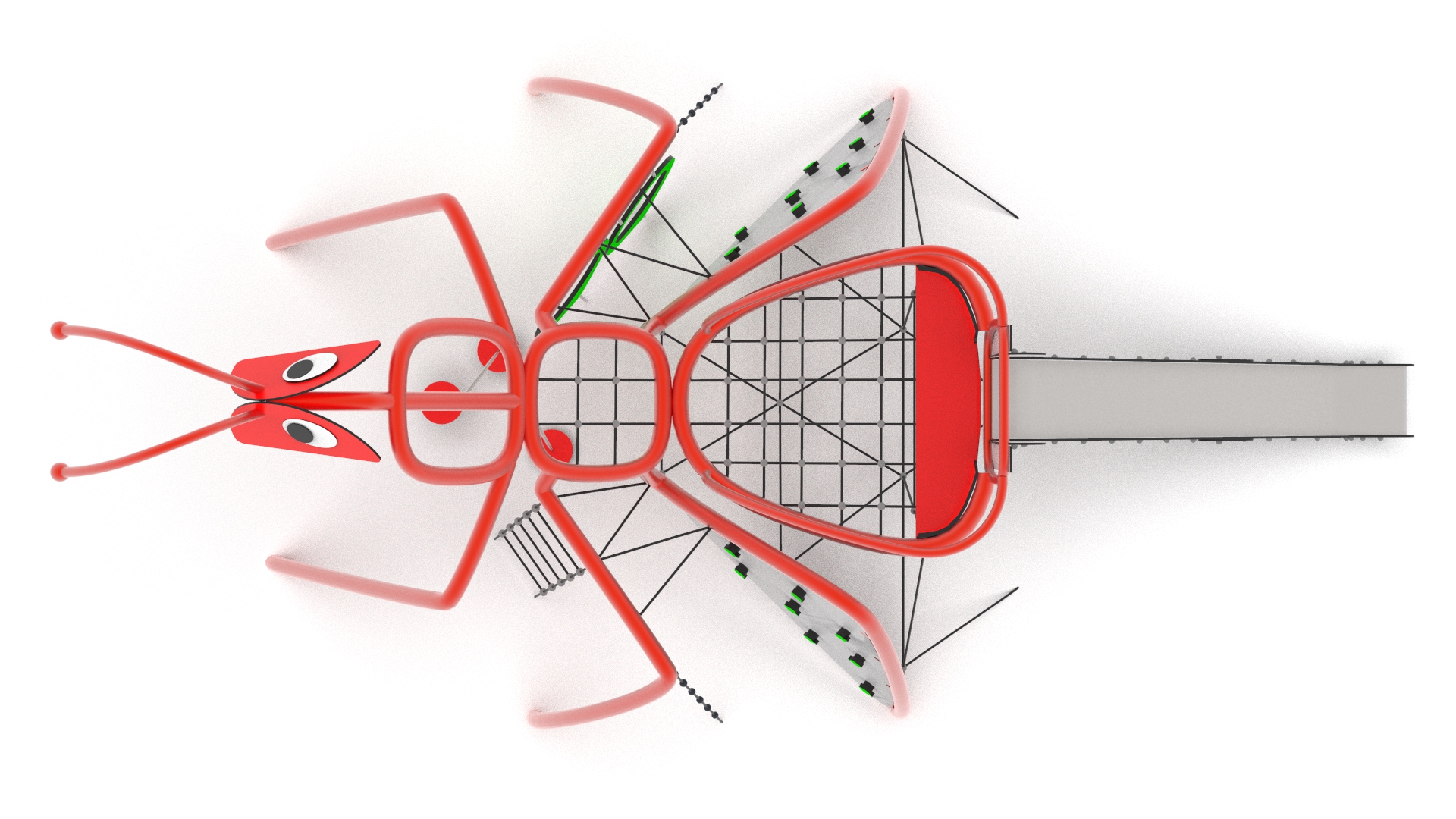

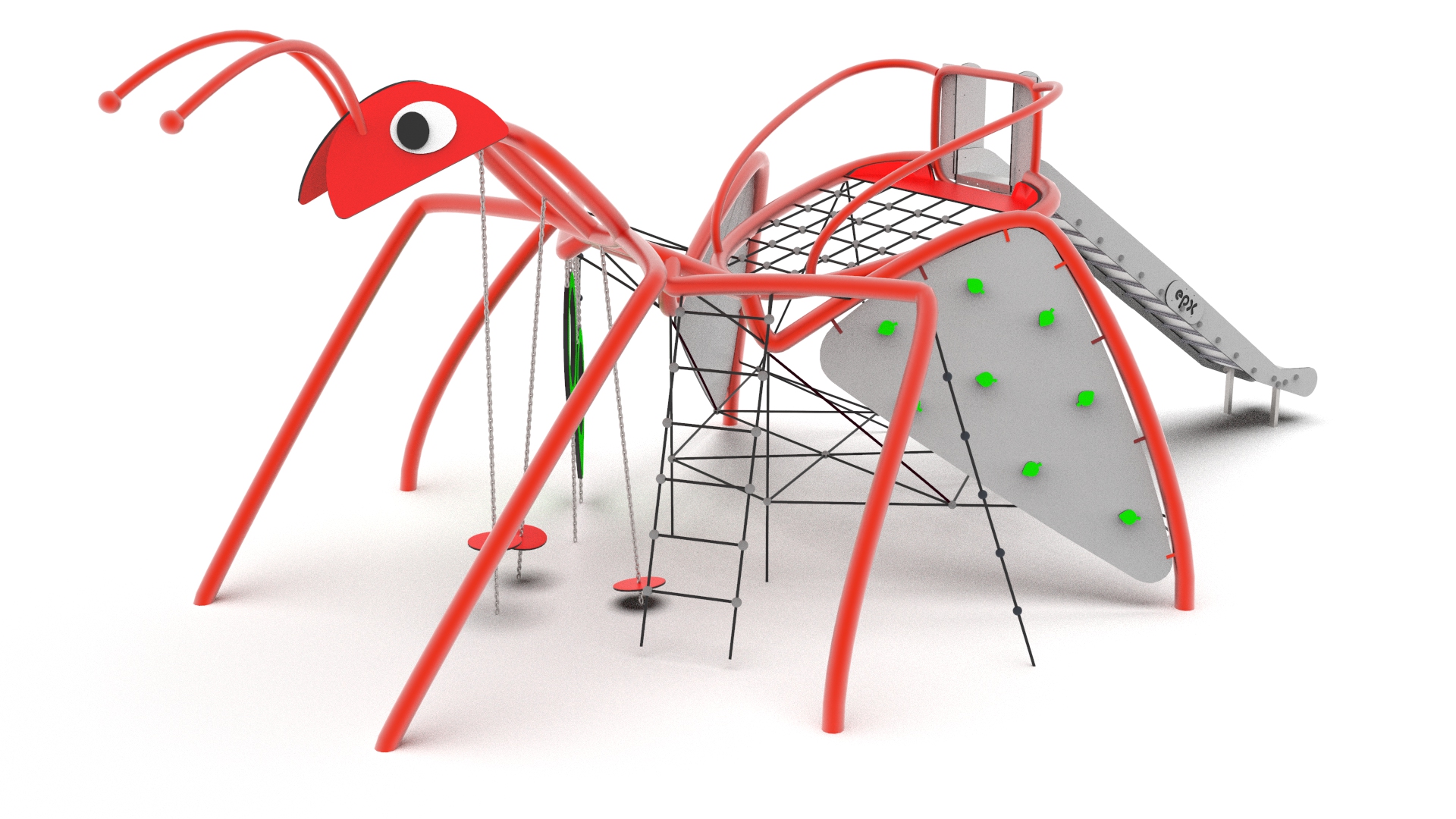

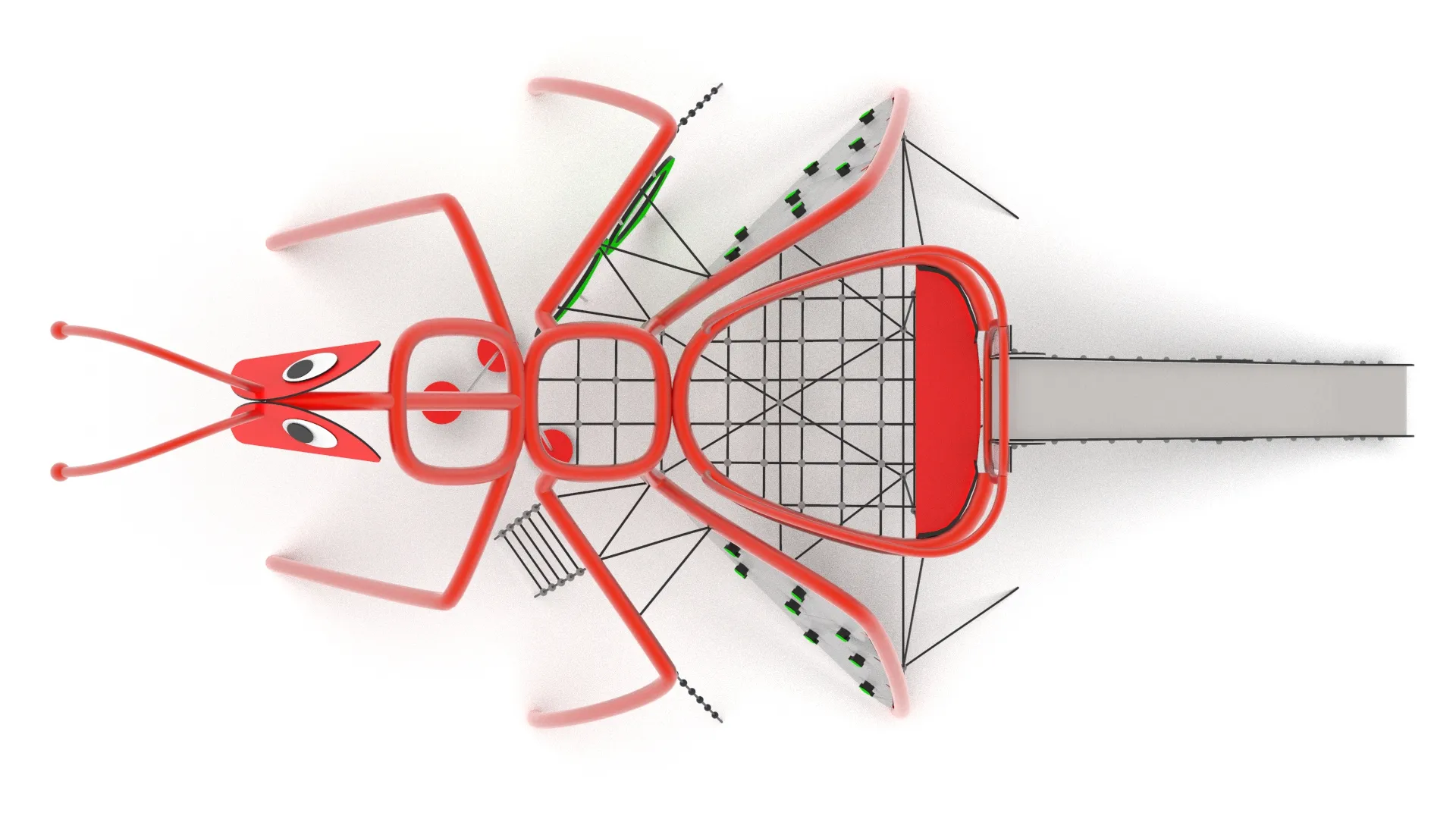

Giant Ant Climbing Frame with Slide, Rope Nets & Climbing Wall
Giant ant climbing frame with stainless steel slide, rope nets, climbing wall and hanging elements. Up to 19 users. BS EN 1176 certified.
Overview
A giant ant climbing frame with rope nets, a rope ladder, a climbing wall, hanging discs and rope hoops, and a stainless steel slide. Children climb up into the ant's body by several routes, test their balance on the hanging elements and leave down the slide, building grip, strength, coordination and confidence. Several ways in and out keep groups moving, with room for 19 users at once, and the bold red ant makes a memorable landmark for parks and school playgrounds. The frame is zinc-primed, powder-coated steel tube with steel-core rope, HDPE panels and an AISI 304 stainless steel slide. Certified to BS EN 1176-1:2017+A1:2024.
- Product type: Themed climbing frame with slide
- Functions: Climbing, sliding, balance, pull-up and grip, imaginative play, group play
- Dimensions (L x W x H): 8.65 x 4.60 x 3.30 m
- Safety zone: 12.15 x 7.60 m
- Free-fall height: 2.2 m
- User capacity: 19
- Frame: Steel tube, zinc-primed and powder-coated
- Ropes: Ø16 mm polypropylene rope with steel core, aluminium and high-grade plastic connectors
- Chains: Calibrated galvanised technical chains
- Panels: Coloured HDPE and anti-slip HDPE
- Slide: AISI 304 stainless steel bed with HDPE side panels
- Fixings: Anti-corrosion protected bolts and connections
- Standard: BS EN 1176-1:2017+A1:2024
- Surfacing: EN 1177 impact-absorbing surfacing across the impact area, rated to at least 2.2 m
- Morti ref.: MSP180JJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
Downloads
Need CAD files or a site-specific layout? Ask us and we'll send them over.
Get a free design & budget price
Tell us your site size and age group and we'll send a layout, surfacing options and a budget price — usually within one working day.
