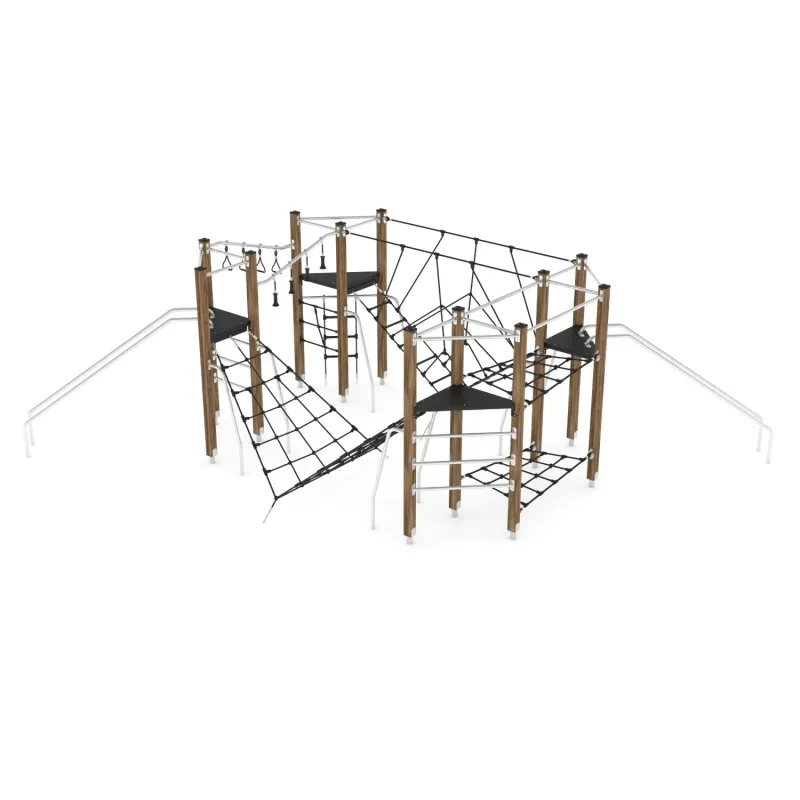

Large Timber Multi-Climber with Tube Slides, Rope Nets & Net Bridges
Large timber multi-climber for 36 users aged 4–16: rope nets, net bridges, overhead grips, platforms and two tube slides. BS EN 1176. For schools.
Overview
A big, open climbing structure for older children, with routes in every direction. Rope climbing nets and net bridges link triangular platforms at height, overhead hanging grips test upper-body strength, and two stainless steel tube slides give a fast way down at either end. With space for 36 users aged 4–16, it suits large primary and secondary school sites, parks and community play areas looking for a high-capacity centrepiece. Laminated, impregnated pine posts on galvanised anchors, HPL platforms on galvanised steel frames and steel-core rope; certified to BS EN 1176-1.
- Product type: Open timber climbing structure with net bridges and two tube slides
- Play activities: Climbing nets (rope nets up to the platforms); Net bridges (net crossings between platforms); Overhead grips (hanging grips for an upper-body traverse); Rope ladder (ladder with synthetic rungs); Platforms (triangular decks at height); Tube slides (two stainless steel tube slides)
- Dimensions (L x W x H): 6.86 x 5.47 x 2.30 m
- Safety zone: 9.86 x 8.47 m (54.8 m²)
- Free-fall height: 2.00 m
- User capacity: 36 users
- Recommended age: 4–16 years
- Posts: Laminated, impregnated and double-coated knot-free pine, 90 x 90 mm, with polypropylene top caps
- Post anchors: Hot-dip galvanised steel feet keep the timber clear of the ground to prevent rot
- Platforms: Anti-slip, waterproof plywood or HPL on galvanised, powder-coated steel frames
- Tube slides: Stainless steel
- Grips: Synthetic material
- Rope ladders: Steel-core rope with synthetic rungs
- Chains: Calibrated stainless steel chains to prevent finger entrapment
- Ropes: Steel-core rope with polypropylene braid; plastic, stainless steel or aluminium connectors
- Bars & fittings: Stainless steel
- Fixings: Cap-covered or stainless steel screws; polypropylene post caps
- Foundations: Concrete footings 60–80 cm deep on level ground
- Standard: BS EN 1176-1:2017+A1:2023
- Surfacing: Free-fall height is 2.00 m, so impact-absorbing surfacing is needed across the impact area: a synthetic surface tested to EN 1177 for a critical fall height of at least 2.00 m, or 300 mm of loose-fill bark, woodchip or sand. We'll specify and quote the right surface for your site.
- Morti ref.: MSP1453JJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
Downloads
Need CAD files or a site-specific layout? Ask us and we'll send them over.
.webp)
Get a free design & budget price
Tell us your site size and age group and we'll send a layout, surfacing options and a budget price — usually within one working day.
