Stainless Steel Climbing Circuit – Ladders, Net Chimney & Hanging Rings for Schools & Parks
Stainless steel climbing circuit with five ladders, a net chimney, climbing wall and hanging rings. 14 users, ages 6+. BS EN 1176.
Overview

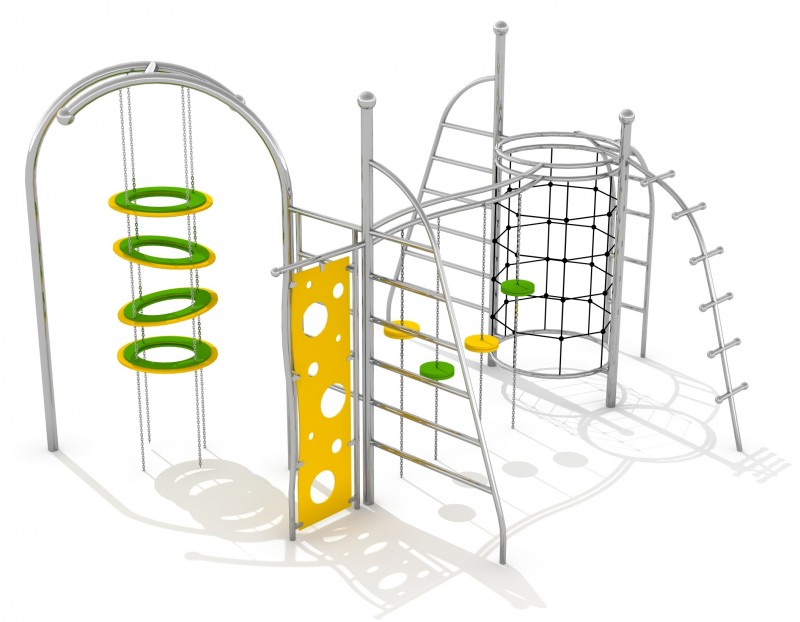

The Stainless Steel Climbing Circuit is designed like an outdoor fitness frame for older children and teenagers. Two linked stainless steel frames carry five shaped ladders, a vertical net chimney, a climbing wall with handholds, a bridge of suspended stepping discs and four hanging rings, so children can climb, hang, balance and cross in one continuous route. It builds upper-body and core strength, coordination and confidence, and takes up to 14 users at once. At 4.60 x 3.80 x 2.90 m with a 2.0 m free-fall height, it suits secondary schools, parks and youth areas. Certified to BS EN 1176 and designed, supplied and installed by Morti Sport & Play.
- Product type: Stainless steel climbing frame
- Functions: Climbing, hanging, balancing, getting across, stretching, social play
- Elements: 5 climbing ladders, net chimney, climbing wall, bridge of suspended discs, 4 hanging rings
- Dimensions (L x W x H): 4.60 x 3.80 x 2.90 m
- Safety zone: 8.07 x 7.37 m overall (irregular outline)
- Free-fall height: 2.00 m
- User capacity: 14
- Users: Recommended age 6+ years
- Structure: Stainless steel
- Hanging elements: HDPE rings and discs on chains
- Standard: BS EN 1176
- Surfacing: Impact-absorbing surfacing to EN 1177 required across the safety zone (FFH 2.00 m) — wetpour, bonded rubber mulch or loose-fill at 300 mm depth
- Morti ref.: MSP703IJJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
Downloads
Need CAD files or a site-specific layout? Ask us and we'll send them over.
Get a free design & budget price
Tell us your site size and age group and we'll send a layout, surfacing options and a budget price — usually within one working day.
