Timber Climbing Frame with Crawl Tunnel, Rope Nets & Monkey Bars
Timber climbing frame with crawl tunnel, rope nets, climbing wall and monkey bars. 13 activities, ages 3–14. BS EN 1176 certified for schools and parks.
Overview

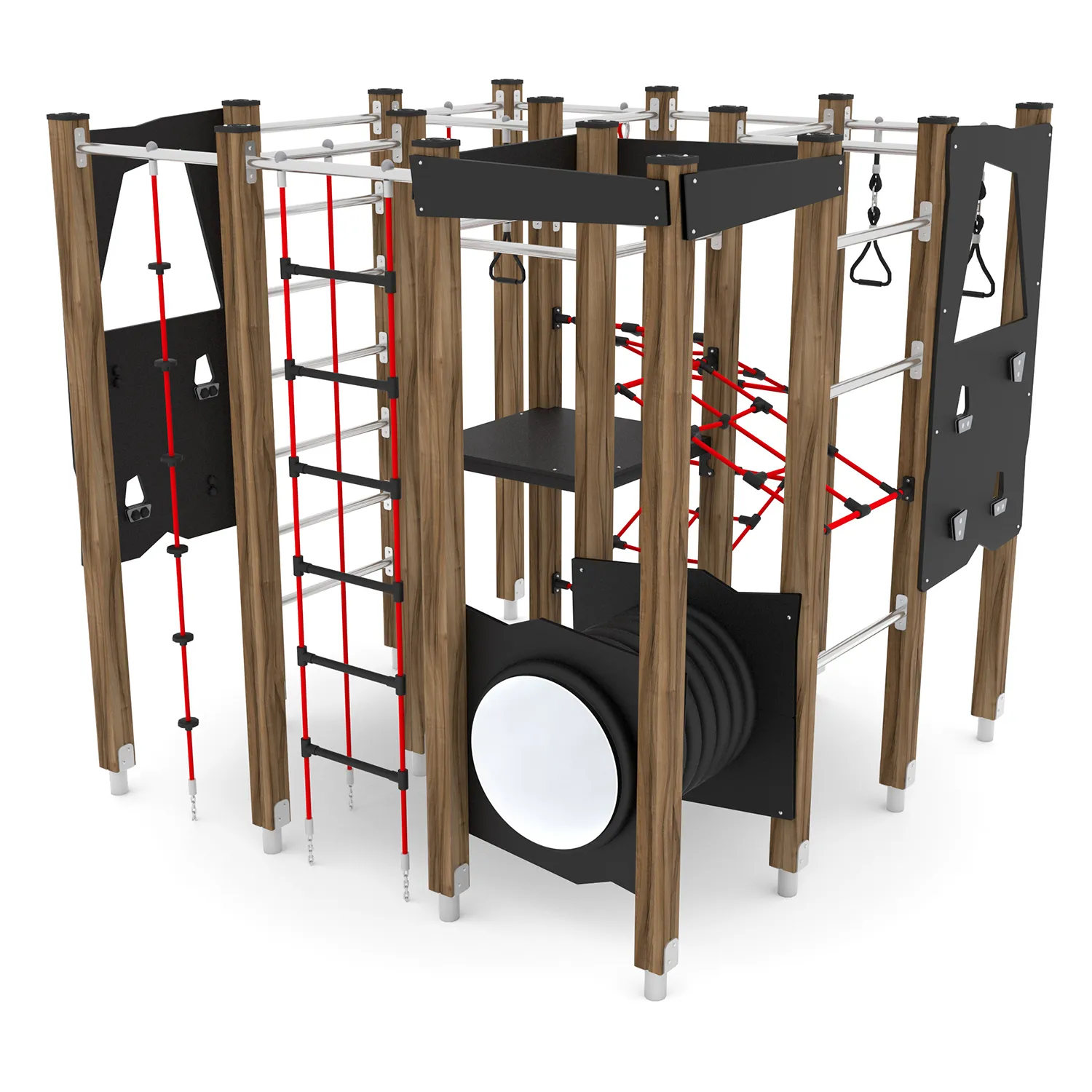

A compact timber climbing frame that packs thirteen activities into a 2.40 x 2.33 m footprint. Children climb rope ladders, a rope net and a climbing wall to a 1.2 m platform, swing along overhead bars and grip rings, and crawl through a double-wall tunnel at ground level. Mixed-age groups can each find their own route, building grip, upper-body strength, balance and coordination. Laminated pine posts sit on hot-dip galvanised steel anchors, clear of ground contact, with stainless steel bars and steel-core rope. It suits primary school playgrounds, parks and housing development play areas where space is tight. Certified to BS EN 1176-1 for ages 3–14, with room for 23 users.
- Product type: Single-tower timber climbing frame, 13 activity elements
- Functions: Climbing, pull-up and hanging, balance, crawling, passage between levels
- Dimensions (L x W x H): 2.40 x 2.33 x 2.30 m
- Safety zone: 6.22 x 6.31 m (33.9 m²)
- Free-fall height: 2.2 m (platform height 1.2 m)
- User capacity: 23
- Users: Recommended age 3–14
- Posts: Laminated, impregnated and double-coated knot-free pine, 90 x 90 mm, with polypropylene caps
- Anchors: Hot-dip galvanised steel, keeping timber clear of the ground
- Platforms & walls: Anti-slip, waterproof plywood or HPL; HDPE climbing holds
- Crawl tunnel: Double-wall polypropylene tube
- Ropes & ladders: Steel-core rope in polypropylene braid; synthetic rungs; stainless steel ladders
- Bars, chains & fixings: Stainless steel bars; calibrated stainless steel chains; stainless or capped screws
- Standard: BS EN 1176-1:2017+A1:2023
- Surfacing: EN 1177 impact-absorbing surfacing across the impact area, rated to at least 2.2 m
- Morti ref.: MSP1462JJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
