Stainless Steel Two-Tower Play Unit – Slide, Wheel Bridge & Climbing Wall for Schools & Parks
Compact stainless steel play unit: two roofed towers, a wheel bridge, slide and climbing wall. 12 users, ages 6+. BS EN 1176.
Overview

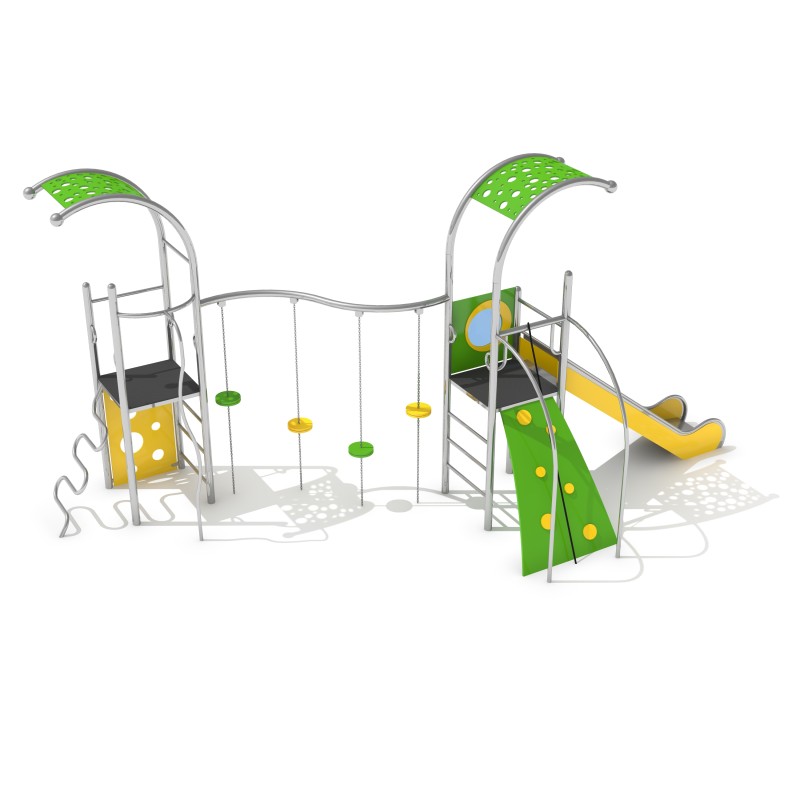

The Stainless Steel Two-Tower Play Unit packs climbing, crossing and sliding into a 6.76 x 3.59 m footprint. Two towers with openwork arched roofs are linked by a bridge of four suspended wheels; children climb in by ladders and a climbing wall, cross the bridge, and leave by the stainless steel slide or the straight pole. The frame is welded AISI 304 stainless steel without clamps, with 10 mm non-slip HPL platforms at 1.5 m and 15 mm three-layer HDPE panels. It takes up to 12 children at once. A compact, hard-wearing choice for primary schools, parks and housing developments. Certified to BS EN 1176 and designed, supplied and installed by Morti Sport & Play.
- Product type: Stainless steel multi-play unit
- Functions: Climbing, sliding, balancing, getting across, social play
- Elements: 2 towers with arched roofs, stainless slide, wheel bridge, climbing wall, 2 ladders, straight pole
- Dimensions (L x W x H): 6.76 x 3.59 x 3.73 m
- Safety zone: 10.27 x 6.60 m overall (irregular outline)
- Free-fall height: 2.50 m
- Platform height: 1.5 m
- User capacity: 12
- Users: Recommended age 6+ years
- Structure: Welded stainless steel AISI 304; Ø76.1, 33.7 and 25.0 x 2.0 mm tube; 40 x 40 x 2.0 mm profiles
- Platforms: 10 mm HPL, non-slip
- Panels: 15 mm three-layer HDPE
- Standard: BS EN 1176
- Surfacing: Impact-absorbing surfacing to EN 1177 required across the safety zone (FFH 2.50 m) — wetpour, bonded rubber mulch or loose-fill at 400 mm depth
- Morti ref.: MSP622IJJ
Specification
Certified to the relevant BS EN standard — full details in the product description and data sheet
Safety & surfacing
We'll match the safety surfacing to this item's free-fall height, your site and your budget, and include it in your quote. Where impact-absorbing surfacing is needed, it meets EN 1177. Annual inspection is recommended for school and public installations.
Downloads
Need CAD files or a site-specific layout? Ask us and we'll send them over.
Get a free design & budget price
Tell us your site size and age group and we'll send a layout, surfacing options and a budget price — usually within one working day.
